Pre-Expander Machine
Pre-expander Machine

time:2017-03-25 14:38
hits:

Features of EPS batch pre-expander Machine: 1, Steam system: EPS Batch pre-expander equipment use precise pressure reducing valve and PID(proportional valve system) to keep constant steam. 2, Pressure control: EPS Batch pre-expander equipme

Product Details Send Enquiry

Features of EPS batch pre-expander Machine:

1, Steam system: EPS Batch pre-expander equipment use precise pressure reducing valve and PID(proportional valve system) to keep constant steam.

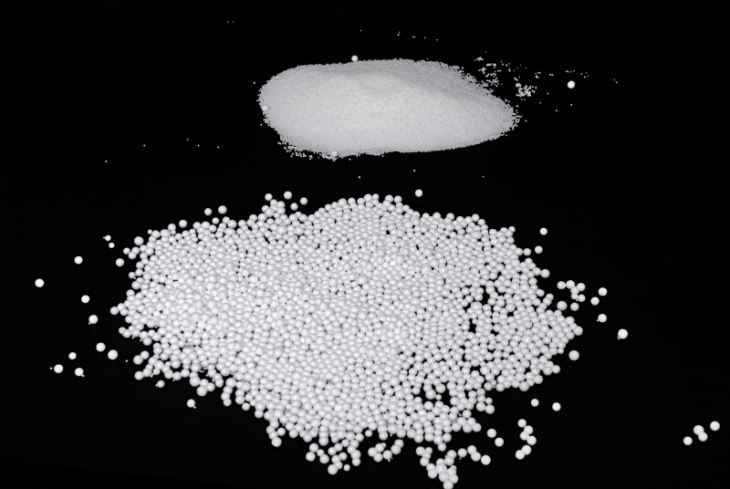

2, Pressure control: EPS Batch pre-expander equipment 's pressure sensor works with multi-valves venting system, ensuring stable pressu Pre-expanded polystyrene re inside expansion chamber.

3, Temperature control: Adopts temperature sensor and compressed air proportional valve to keep accurate expansion temperature, suitable for high density expansion.

4, Material level control: EPS Batch pre-expander equipment use vibration sensor to control material level.

5, Material filling system: With batch controller and weighing scale to ensure same input weight every batch.

6, Electrical control: PLC and touch screen, electronic parts, valves etc. are all of famous brand at home and abroad


Specifications
Item Unit HR- 500 HR-1100 HR-1500
L*W*H mm 3100*1500*3500 3700*2100*4000 3700*3000*5300
Weight kg ≈1200 ≈2500 ≈3500
Steam Consumption kg/cycle 3-6 6-10 12-18
Air Consumption m3/cycle 0.5-0.9 1.2-2.5 1.5-3
Power Consumption kw 3.1 9.6 19.8
Chamber Diameter mm φ500 φ1100 φ1500
Height mm 1000 1500 2200
Volume m3 0.2 1.43 3.89
Steam Entry mm φ25 φ50 φ50
Entry Pressure mpa 0.5-0.8 0.5-0.8 0.5-0.8
Compressed Air Entry mm φ25 φ40 φ50
Entry Pressure mpa 0.5-0.8 0.5-0.8 0.5-0.8
Drainage Motor mm φ65 Φ80 φ100
Drainage mm φ65 Φ80 φ100
Density Calculation -- Density Calculation Density Calculation Density Calculation
Density Tolerance -- <±3% <±3% <±3%
Spinning Motor kw 1.1 4 11
Functioning Expansion Rate 12-40g/l 13-30g/l 12-30g/l
Productivity 12 g/l 60-80kg/h 12 g/l 250-300kg/h 12 g/l 600-650 kg/h
18 g/l 90-120kg/h 18 g/l 350-400kg/h 18 g/l 900-920kg/h
20 g/l 130-160kg/h 20 g/l 450-500kg/h 20 g/l 1000-1200kg/h
35 g/l 180-210kg/h 30 g/l 580-620kg/h 30 g/l 1500-1600kg/h
Note: this information is for reference only, further details to be confirmed with the company
